Lufft

WS600 Compact Weather Sensor

Six parameters in one compact, maintenance-free housing — temperature, humidity, pressure, wind speed, wind direction and precipitation intensity for professional meteorological and infrastructure monitoring.

Overview

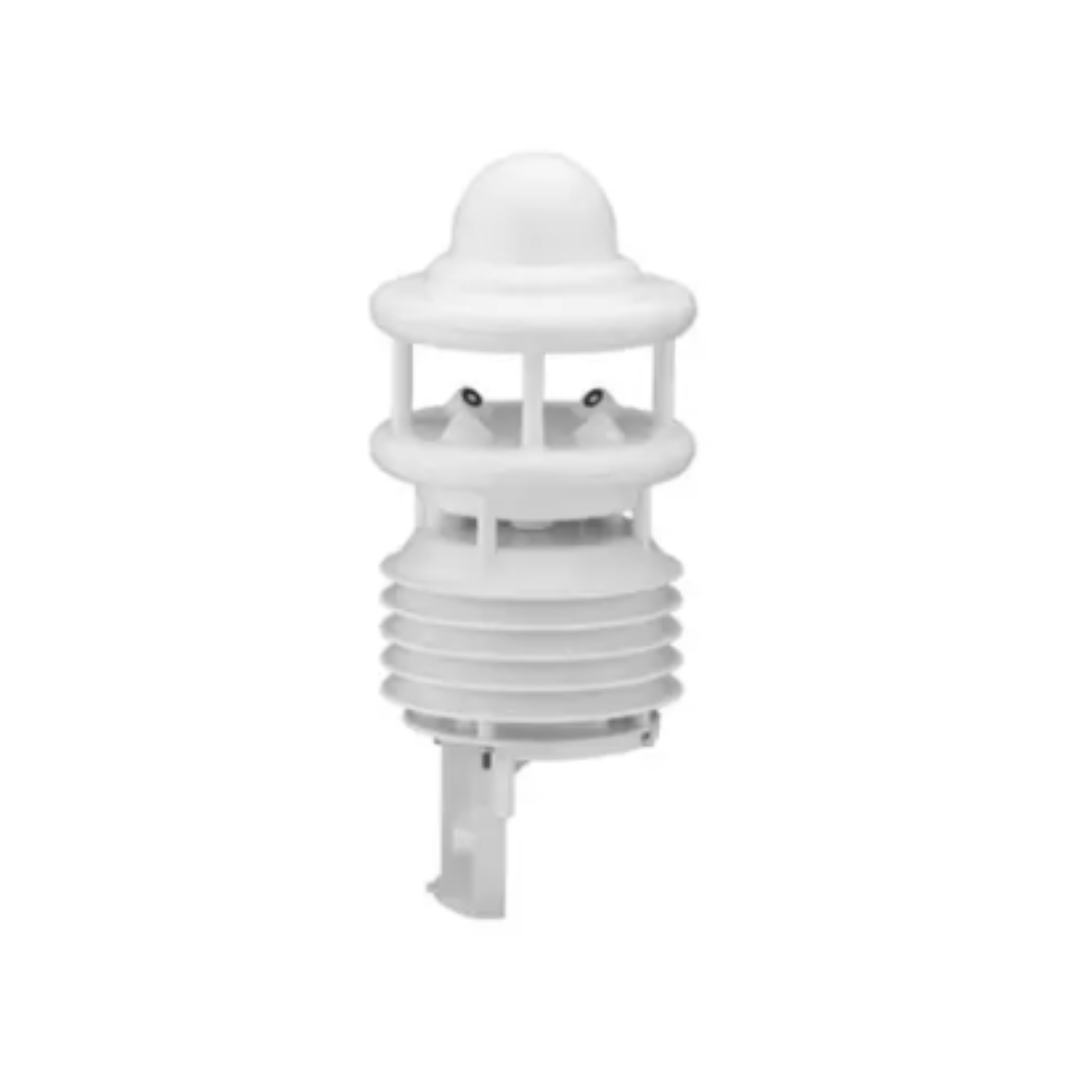

WS600 Compact Weather Sensor

The WS600 is a professional all-in-one compact weather sensor that delivers six critical meteorological parameters from a single, maintenance-free unit. Using ultrasonic wind measurement and optical precipitation detection — both with no moving parts — the WS600 is built for long-term unattended deployment in demanding environments from alpine stations to urban infrastructure.
Key Benefits
  • Six parameters in one unit — reduces wiring, footprint and maintenance
  • No moving parts — ultrasonic wind and optical precipitation technology
  • Wide operating temperature range of -50 to +60°C
  • High wind speed capability up to 75 m/s
  • UMB interface for seamless integration into Lufft sensor networks
  • Compact, low-profile design ideal for space-constrained deployments
Measured Parameters

Six Parameters — One Sensor

The WS600 replaces an array of individual sensors with a single compact unit, covering every core meteorological variable needed for professional monitoring.

Air Temperature
−50 to +60 °C

Wide-range precision thermometry for all climatic zones from arctic to tropical environments.

Relative Humidity
0 – 100 % RH

Full-range capacitive humidity measurement for dew point calculation and condensation monitoring.

Air Pressure
300 – 1200 hPa

Barometric pressure measurement covering sea level to high-altitude mountain station deployments.

Wind Speed
0 – 75 m/s

Ultrasonic anemometry — no moving parts, no stall speed and reliable measurement in gusts up to 75 m/s.

Wind Direction
0 – 359.9°

Full 360° directional measurement with no mechanical components to wear or require recalibration.

Precipitation Intensity
~0.5 – 200 mm/h

Optical precipitation detection providing real-time rainfall intensity without tipping bucket mechanisms.

6
Parameters in One Unit
75 m/s
Max Wind Speed
110°
Operating Temperature Range (°C)
Zero
Moving Parts
Specifications

Full Specification Table

ParameterRange
Air Temperature−50 to +60 °C
Relative Humidity0 – 100 % RH
Air Pressure300 – 1200 hPa
Wind Speed0 – 75 m/s
Wind Direction0 – 359.9°
Precipitation Intensity~0.5 – 200 mm/h
Wind TechnologyUltrasonic — no moving parts
Precip. TechnologyOptical detection
InterfaceUMB (Universal Measurement Bus)
Applications

Where the WS600 Is Used

The WS600's six-in-one design and no-moving-parts construction make it the go-to compact sensor across a wide range of monitoring applications.

Railways Smart Cities Road & RWIS Networks Aviation AWOS Renewable Energy Sites Alpine Stations Ports & Maritime Automatic Weather Stations IoT & Automation
UMB & System Integration

The WS600 uses Lufft's Universal Measurement Bus (UMB) — the same standardized interface across the full Lufft sensor family. It pairs directly with the VS2k visibility sensor, NIRS31-UMB road condition sensor and third-party RWIS controllers, making multi-sensor site wiring straightforward.

  • Compatible with Lufft VS2k visibility sensor via shared UMB bus
  • Pairs with NIRS31-UMB road condition sensor for complete RWIS
  • Modbus, SDI-12 and analogue outputs available
  • Data feeds directly into geospatial display
Complete Your Station

Pair the WS600 with Other Lufft Sensors

Extend your monitoring capability by combining the WS600 with other Lufft instruments on a single UMB bus for a complete station in a minimal footprint.

VS2k Visibility Sensor

Add forward-scatter visibility and present weather detection to your WS600 station.

View Product

NIRS31-UMB Road Sensor

Add non-intrusive NIR road surface condition detection for RWIS deployments.

View Product

CHM Ceilometer

Add LIDAR-based cloud height and aerosol profiling for aviation weather stations.

View Product

Simplify Your Weather Station with the WS600

Contact us to discuss the WS600 for your AWS, RWIS or infrastructure monitoring project, or to request a full technical datasheet.
